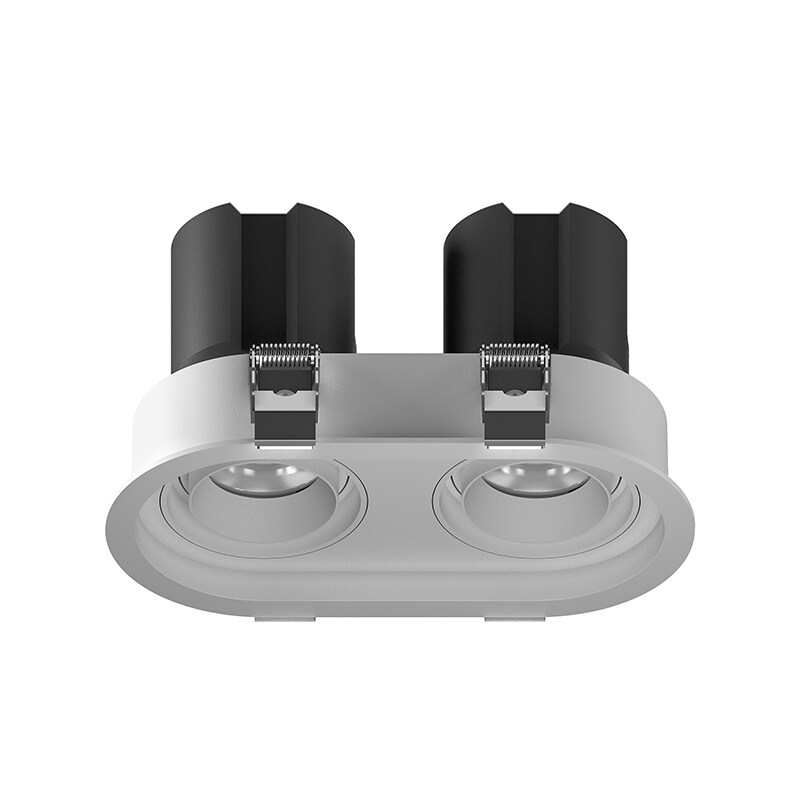

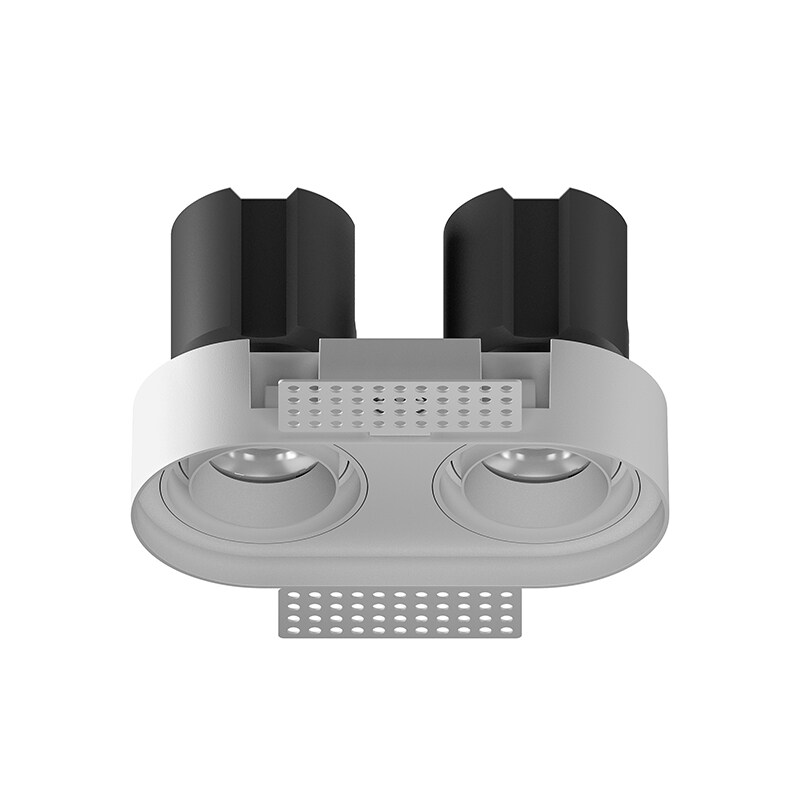

VENTIX round multiples spotlight T-S324

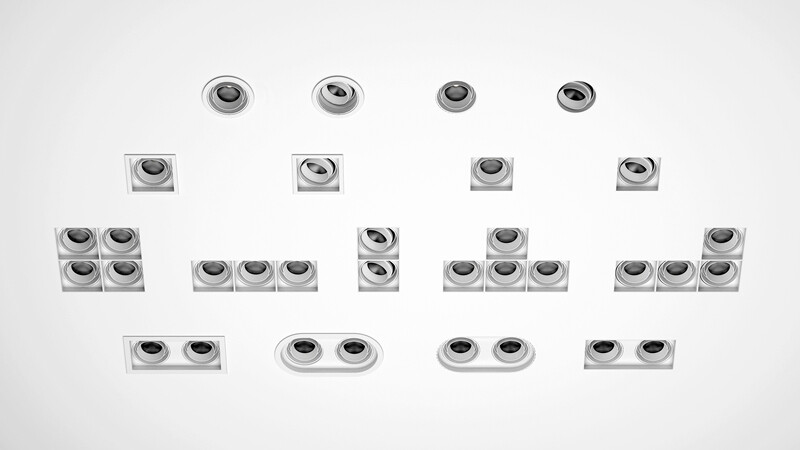

round adjustable/square adjustable

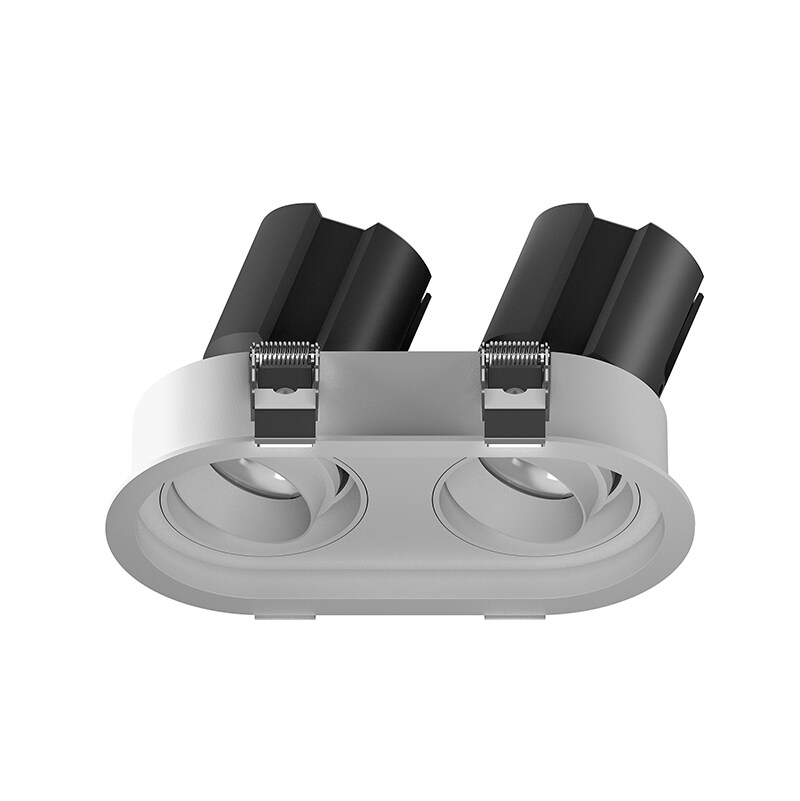

Swing 30° left and right, Horizontal rotation 355°

COB Chip
Can match many kinds of brand,such as CREE/CITIZEN/BRIDGELUX etc.

High quality die-casting heatsink and unique heatsink design ensure better heat dissipation

Use professional optic lens and micro structure diffuser to decrease the light loss and make the light more smooth.

Professional optics
precise lighting distributon and excellent anti-glare control makes the light comfortable and elegant.

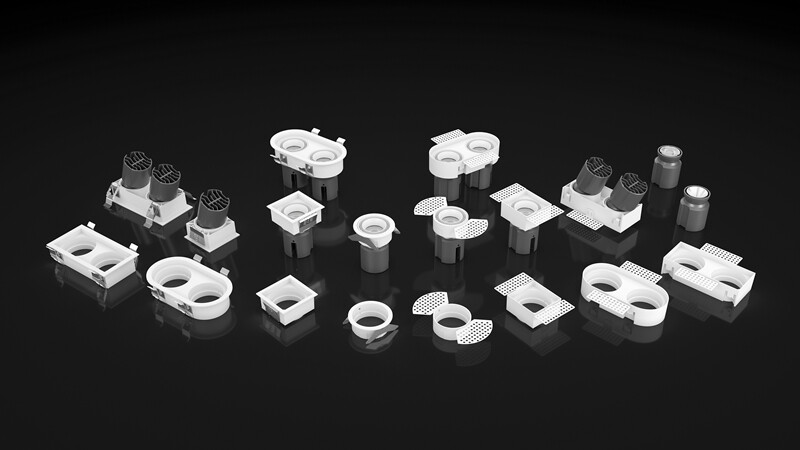

honeycomb & optics accessory

Deep recessed LED design to increase cut-off angle,reduces glare effectively and improves visual comfort,UGR<19.

adjustable ring


Over 30-Year Factory Producing Experience

1. Deep reflector cup, providing anti-glare performance.

2. Honeycomb Mesh, effectively prevent excess astigmatism.

3. Die-casting aluminum radiator with higher heat dissipation efficiency.

round adjustable/square adjustable
Swing 30° left and right, Horizontal rotation 355°

COB Chip
Can match many kinds of brand,such as CREE/CITIZEN/BRIDGELUX etc.

High quality die-casting heatsink and unique heatsink design ensure better heat dissipation

Use professional optic lens and micro structure diffuser to decrease the light loss and make the light more smooth.

Professional optics
precise lighting distributon and excellent anti-glare control makes the light comfortable and elegant.

honeycomb & optics accessory

Deep recessed LED design to increase cut-off angle,reduces glare effectively and improves visual comfort,UGR<19.



Our quality control (4 times 100% checking and 24 hours aging)

1.Raw material 100% check before production.

2.order must have a first sample and full check before manufacturing process.

3.100% check before aging.

4.24 hours aging with 500 times on off testing.

5.100% final inspection before packing.

FAQ

1.Are you a factory or trading company?
We are a 30-years factory, we provide ODM& OEM services.
2.What is your main product line is made?
We mainly produce led lights and lighting fixtures.Focus on commercial lighting.(led downlight, led track light, linear light etc.)
3. You have the ability to do independent research and development?
Our engineering department has 10 staffs, we have the R&D ability to make our products competitive. We also collect regularly customer feedback, products improvement and new product requirement. We also hold monthly new product launches.
4. What certificates you have?
Our products have passed CE, RoHS, ISO and etc
5.What is your production capacity?
150,000-200,000pcs per month
6.What is the warranty?
Most of our products are 2-5 years warranty.
7.How about the delivery time ?
Delivery time for sample:3-5days after get your samples request and samples charge.
Delivery time for mass production: 25-40days after order confirmed after receiving buyer's deposit
8.How do you handle defects?
1/1 replacement of defects within the warranty period.
9.How about the Package & Product design?
Based on factory original box,original design on product with neutral laser and label,original package for export carton.If need your mark on products or packing, please tell us, we can do it for you.
adjustable ring

PRODUCT DATA

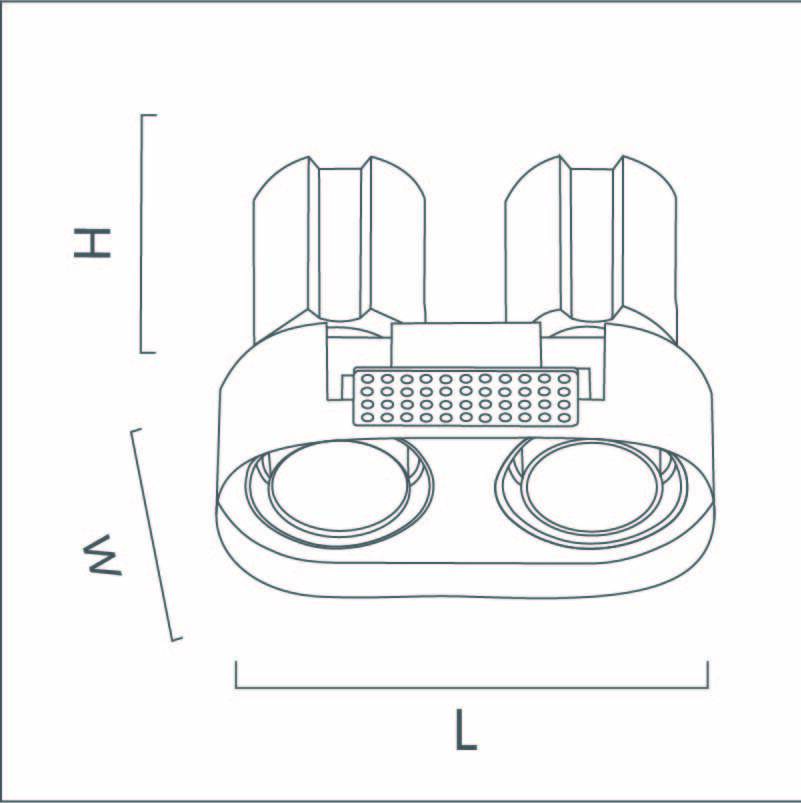

Model Power Light Output Light Efficiency CRI Beam angle Size Cutout
S323-2 trimless 2*7W ≥1190 lm ≥85 lm/W ≥90 10°/15°/24°/38°/50° H88 L111*W57.5
S324-2 trimless 2*20W ≥3400 lm ≥85 lm/W ≥90 10°/15°/24°/38°/50° H122 L152.5*W77
S325-2 trimless 2*35W ≥5950 lm ≥85 lm/W ≥90 10°/15°/24°/38°/50° H143 L192.5*W97
S323-3 trimless 3*7W ≥1785 lm ≥85 lm/W ≥90 10°/15°/24°/38°/50° H88 L165.5*W57.5
S324-3 trimless 3*20W ≥5100 lm ≥85 lm/W ≥90 10°/15°/24°/38°/50° H112 L224.5*W77
S325-3 trimless 3*35W ≥8925 lm ≥85 lm/W ≥90 10°/15°/24°/38°/50° H143 L287*W97
S323-4 trimless 4*7W ≥2380 lm ≥85 lm/W ≥90 10°/15°/24°/38°/50° H88 L111*W111
S324-4 trimless 4*12W ≥6800 lm ≥85 lm/W ≥90 10°/15°/24°/38°/50° H112 L152.5*W152.5
S325-4 trimless 4*35W ≥11900 lm ≥85 lm/W ≥90 10°/15°/24°/38°/50° H143 L192.5*W192.5
